stainless steel sample cylinder gas sampling cylinder for sampling system used for oil pipe industry

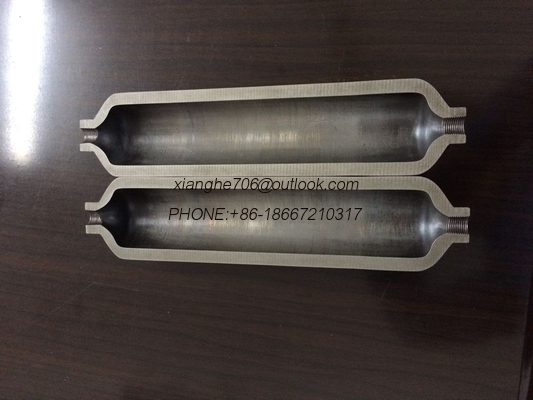

Large Image : stainless steel sample cylinder gas sampling cylinder for sampling system used for oil pipe industry

Product Details:

Contact Now

Detailed Product Description

Sampling cylinders are mainly used for the collection and analysis of gas products. Mito sampling cylinders are currently used extensively in petrochemical plants, oil and gas fields, analytical laboratories and special research institutes

(Sampling Cylinder)
Part No.	Model	Outside Diameter		Water Capacity		Wall Thickness		Service Pressure		Weight		Length
Part No.	Model	mm	in	Lts	Cu in	mm	in	bar	psi	kgs	lbs	mm	in
S1	LWS89-0.7-15	89	3.5	0.7	42.7	4.5	0.2	150	2175.6	0.7	1.5	232	9.1
S2	LWS89-1.0-15	89	3.5	1.0	61.0	4.5	0.2	150	2175.6	0.9	1.9	291	11.5
S3	LWS89-2.0-15	89	3.5	2.0	122.0	4.5	0.2	150	2175.6	1.6	3.4	361	14.2
S4	LWS108-1.0-15	108	4.3	1.0	61.0	5.5	0.2	150	2175.6	1.0	2.2	252	9.9
S5	LWS108-2.0-15	108	4.3	2.0	122.0	5.5	0.2	150	2175.6	1.8	4.0	386	15.2
S6	LWS108-3.0-15	108	4.3	3.0	183.1	5.5	0.2	150	2175.6	2.6	5.8	520	20.5
S7	LWS108-4.0-15	108	4.3	4.0	244.1	5.5	0.2	150	2175.6	3.4	7.5	654	25.7
S8	LWS140-4.0-15	140	5.5	4.0	244.1	7.1	0.3	150	2175.6	4.5	9.9	450	17.7
S9	LWS140-6.0-15	140	5.5	6.0	366.1	7.1	0.3	150	2175.6	5.3	11.7	611	24.1
S10	LWS140-8.0-15	140	5.5	8.0	488.2	7.1	0.3	150	2175.6	6.7	14.8	773	30.4
